A wide range of Gapmasters are in-stock for your tracklaying needs:

    GM001:  O Standard Gauge  --  8 foot ties  -- matches Mt Albert or Kappler ties exactly



GM002:  PECO On30 flextrack  -- shaped to match PECO tie shape and profile



     GM004:  On3 Handlaid  -- 6 foot ties  -- matches Mt Albert or Kappler ties exactly

     GM005:  On30 Handlaid  -- 6 foot ties  -- matches Mt Albert or Kappler ties exactly

     GM006:  On30 MicroEngineering flextrack -- exact tie profile and random spacing

     GM007:  HO Standard Gauge MicroEngineering, Peco or Atlas flextrack or Handlaid

     GM008:  N Standard Gauge flextrack or Handlaid (shown installed on MicroEngineering Code55 flextrack)

     GM009:  Nn3 or Z gauge

    GM011:  On30 Handlaid  -- 6 foot 6 inch ties  -- matches Mt Albert MA-377 or Kappler ties exactly  (5" x 7" x 78")

    GM012:  Sn3 Handlaid  -- 6 foot 6 inch ties  -- matches Mt Albert MA-277 or Kappler ties exactly  (5" x 7" x 78").  Also matches P-B-L flextrack ties in all dimensions.

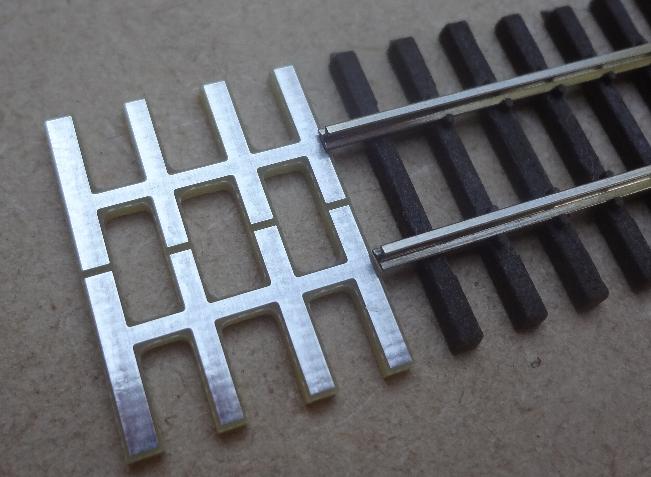

    GM013:  HOn30 -- 7 foot ties  -- matches MicroEngineering (custom run, shown above) flextrack, Railcraft flextrack (ties need to be cut or sanded slightly),  or Handlaid.

    GM014:  On2 -- 5 inch x 5 inch x 5 foot ties on 2 foot centers.

    GM015:  S Standard Gauge -- matches Tomalco flextrack exactly.  Also suitable for Handlaid track.  Note that gap is offset from center for ease of constructing dual-gauge trackwork (see GM007 example below).



    GM017:  On3 Handlaid  -- 6 foot 6 inch ties  -- matches Mt Albert or Kappler ties exactly as well as PSC Top-Trak (Shown) and other On3 flextrack.

   GM018:  TT Scale for Tillig Track  -- Available NOW

Note:  Any Gapmaster may be used for dual-gauge trackage by simply soldering on a middle 3rd rail (HO + HOn3 shown on GM007, code55 rail):

Note how the offset-center gap (standard in all standard-gauge Gapmasters) lines up perfectly in the middle of the 3 foot gauge rails for dual-gauge trackwork!



Please email us at sales@americantieandtimber.com to provide suggestions on other scale/gauge combinations that you would like us to support.  Thank You !

The Gapmaster is reasonably priced :

          1-24 units, $2.50 each, any scale/gauge, mix and match

          25-99 units, $2.25 each, any scale/gauge, mix and match

          100+ units, $2.00 each, any scale/gauge, mix and match

Shipping and Handling is a flat $5 fee in the 48 contiguous United States and $10 to anywhere in Canada, regardless of order size.  Overseas shipping is available for a reasonable rate.  We accept cheque, money order or PayPal.

Free Samples are Available !
